Thermaltake A1604 Aquarius II Liquid Cooling |
|
|
|
| |
|
|
|
| Shipping
Extra |
|
| ATACOM
Part #: WAKI_THER_16_04 |
|
Price:WAKI_THER_16_04
 |
|
|
|
|
|
Chassis
requirement:
(If you are not using Xaser II Series chassis, please check
the space of your chassis in advance)
1. Chassis Dim.: H20.6”xW8.1”xD18.6”
2. Copper Radiator clearance requirement: H3.6”Xw5.7”xD4.0”from
the base to Driver bay
3. Water Pump clearance requirement: H4.7”xW5.3”xD2.0”
inside the chassis.
4. Thermaltake Xaser II Series cases are recommended for AquariusII™
System |
|
|

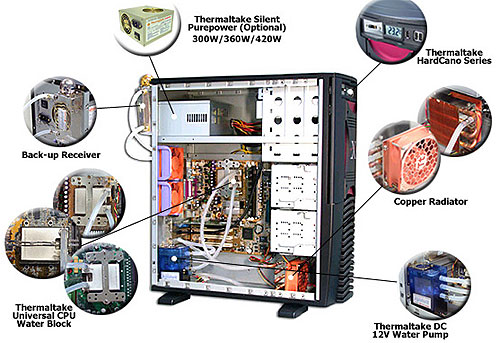

AquariusII™ Liquid
Cooling Components
Thermaltake has already overcame and
got a balance between sound level and thermal performance.
The noise level for AquariusII™ has been tested by Industrial
Technology Research Institute of Taiwan. An ideal combination
of 29dBA and it’s thermal performance can reach 0.24
°C/W
|
|
Water
Block:
Dim: 70x50x12 mm
Material: Copper Forging/ Nickel Plating
Weight: 266g
Features:
1. Made by pure copper and with high conductivity.
2. 3D water channel enhance the heat conduction and convection.
3. Radiate water block spread the heat from the center.
|
|
Universal
Clip:
Application for Intel P4 478 FMB2 and
AMD K7, K8 |
|
|
Copper Radiator:
Dim: 86x130x89 mm
Material: Copper Pipe with Staged Copper Fin
Fan Dim: 80x80x25 mm
Fan Rated Voltage: 12V
Fan Rated Current: 0.14A
Fan Power Input: 1.68W
Fan Speed: 2400 ± 10% RPM
Max. Air Flow: 38.4 CFM
Noise: 22 dBA
Life Expectancy: 50000 hr.
Connector: 3 Pin
Weight: 410g
Features:
1. High density copper fins to maximize the surface area and
with high conductivity.
2. The innovative low speed fan can reduce the system noise
and maximize the heat exchange efficiently.
|
|
| |
|
DC 12V Water Pump:
Dim: 100x50x86 mm
Rated Voltage: 12V
Rated Current: 0.16A
Power Input: 2W
Water Pressure: 1.2 kg/cm2
Pump Speed: 90 L/hr
Connector: 3 Pin
Noise: 20 dBA
Bearing Type: Ceramics Bearing
Life Expectancy: 50000 hr.
Weight: 230g
Features:
1. Small size, low noise, low current and high pump speed.
2. Blue LED light will be a security to warn you if the pump
is functioning and also show you the water level.
3. Secured by “L” type clip to minimize the vibration
and noise from motor.
4. The motor will automatically adjust its speed from 1800rpm
to 2500rpm based on the water resistance.
5. Monitor the motor speed through the 3 Pin connector. |
|
| |
|
Back-up Receiver:
Back-up Receiver stores additional water
to ensure that system is full at all time.
Features:
Install with Back-up receiver
1. With the see-through Back-up Receiver, you can check the
water at any time.
2. When the water level within the system is decreasing, Back-up
Receiver
will automatically supply the necessary liquid to DC Water Pump.
Install without Back-up receiver
1.Back-up Receiver is not required for AquariusIITM to operate.
Users may not wish to have additional accessories outside of
the case.
2. Users will need to check the water level within the DC Water
Pump monthly. Refill the system if necessary.
3. To refill the DC Water Pump, please remove the Tube from
top part of the DC Water Pump. Then connect the Tube from the
Back-up Receiver to it to refill.
Note: Please make sure there are no
water spills, as it might cause serious damage to your electrical
components. |
|
Intelligent
Water Tube:
Better water-flow and avoid compression.
The spring represents the best solution to ensure maximum water-flow. |
|
Thermaltake
Silent Purepower (Optional):
300W /360W /420W
The Silent Purepower assures the balance between noise and heat
exhaust.
With Auto Temperature Control fans. |
|
|
Thermaltake HardCano Series:
Fan Speed Controller
Temp. LCD Monitor
USB 2.0 & IEEE1394 Firewire
|
|
| |
|
 |
- New and improved DC water pump outlast the life expectancy
of traditional open water motor.
- Designed & improved by various respectable manufacturers
and engineers to maximize water-flow, water capacity, thermal
resistance.
- Pure copper design provides maximum heat transfer rate.
Specially processed to prevent copper oxidation.
- DC water pump''s low power consumption eliminate the
need for external power source or additional power supply
unit.
- System is highly upgradeable. Will work with future
CPUs through simple upgrade.
|
